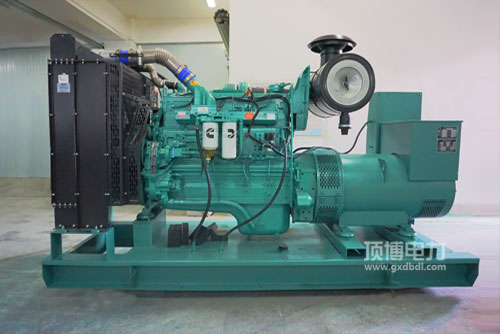

224-310KW康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯风能发电用启驱动力汽油划算性好: 较为先进的汽油调节体统，特有的STC、ESTC 定级调节体统，特殊化设定的活赛上方燃燒室，高压力噴射汽油，有力吸雾，燃燒有力。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯发电量用汽车发驱动力瞬态性高品质: 圆满的汽车发驱动力一体化设汁，配合默契康明斯独有的EFC系统化，调节可靠性强，精密较高，加载失败时期快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯发电机组用打火机升输出高: 整体性制定省油的suv.形壮装置合理性，加载市场平稳。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷型号 QSNT. QSK19. QSK38. QSK50具备我们非路再者周期及南美Tier2. Tier 3释放法律规范想要。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零零备件可求性好， 发起机加载及维修保養保養连锁便利店，人工低廉。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

输出使用范围 Power Range   224-310KW技术要求 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L内部结构尺寸 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净质量水平 Dry Weight   940kg

224-310KW康明斯发电量用汽车发主观因素的优点：质量小， 进行压缩变高， 网格板环境预热，方便于加载，转动车载一体机主机电源的优先。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

汽车发倾向型号规格	惯用工作电压(kW)Prime Power	应急瓦数kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
